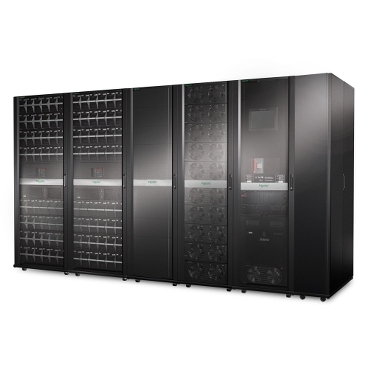

Key Features
High-efficiency power module — 96% in full protection mode Provides the flexibility to scale power capacity in 25 kW increments and adds N+1 capability as well as a fully rated double conversion inverter for providing more real power.
Modular batteries - Connected in parallel for increased availability, swappable battery modules feature advanced battery monitoring and temperature-compensated charging, extending battery life.
Parallel capability - Further enhance your data center’s resilience by adding system-level redundancy to your modular Symmetra PX 250/500.
Dual mains input/output Allows for connection to two separate power inputs for Increased availability — top or bottom.
10-inch LCD touch-screen display - Offers a clear graphical/text based overview of alarms, status data, and instructional help that minimizes the risk of operator errors.
Systemwide firmware updates - A USB port on back of the display enables on-the-fly upgrades, making firmware updates easy and increasing system availability.
Redundant intelligence module - Backup for the main intelligence module provides increased availability.
Built-in static bypass switch - The swappable static bypass switch enables the UPS to transfer the load to utility power without interruption in case of heavy overload or faulty conditions.
Maintenance bypass with distribution - Space-saving design that provides power distribution to your load and, if required, isolation from the UPS while maintaining power to your critical loads.
High-density footprint - Space-saving footprint allows more flexibility on where you place the UPS.
Premium line-up/remote external battery enclosure - Eight enclosures can be connected to the UPS either in-row or remotely, allowing the UPS to be configured to your data center requirements while offering extended runtimes and availability
Key benefits
Availability
• Swappable power, battery, and intelligence modules
• Parallelable for redundancy (1.5 MW N+1)
• N+0 or N+1 module-level redundancy
• N+0 or N+1 system-level redundancy
• Toolless module replacement
• Self-diagnosing, field-replaceable modules
• Redundant intelligence module
• Swappable static bypass switch
• External source synchronization
Scalability
• Scalable 25 kW power modules
• 50 kW to 500 kW power capacity
• Parallelable for capacity (2 MW)
• Extended battery runtime available
Total cost of ownership
• Unity power factor corrected
• High efficiency in full protection mode (96% at 50% load)
• Up to 99% efficiency in good power conditions with ECO Mode
• Integrated monitoring of battery modules
Manageability
• Energy monitoring displays kWh output of each UPS
• Dual mains input, top or bottom feed • Embedded network management
• Remote access over HTTP, HTTPS, Telnet, SSH, SNMP v1, and SNMP v3
• Local access at touch-screen display interface
• Remote display application
• Configurable alarm notifications
• Modbus RS-485 compatible
• StruxureWareTM Data Center Expert compatible
Technical Specification
| Main Input Voltage | 480 V 3 phases 400 V 3 phases |
|---|---|
| Other Input Voltage | 415 V |
| Main Output Voltage | 480 V 3 phases 400 V 3 phases |
| Other Output Voltage | 415 V |
| Rated power | Unity (VA=W) |
| output connector type | Hard wire 4-wire (3P + E) 1 Hard wire 5-wire (3P + N + E) 1 |
| battery type | VRLA |
| provided equipment | Assembly service Installation guide Network management card Start-up service User manual |
| network frequency | 40...70 Hz auto-sensing |
|---|---|
| number of input connectors | 1 hard wire 4-wire (3P + E) 1 hard wire 5-wire (3P + N + E) |
| input voltage limits | 340...460 V 400 V 408...552 V 480 V |
| max short time withstand current | 50 kA |
| input harmonic distortion | Less than 5 % for full load |
| input protection type | 3-pole circuit breaker |
| load power factor | 0.5 leading to 0.5 lagging |
| Input Power Factor at Full Load | 0.99 |
| harmonic distortion | Less than 2 % |
|---|---|
| output frequency | 50 Hz sync to mains 60 Hz +/- 0.1 % for 60 Hz nominal unsynchronised 50 Hz +/- 0.1 % for 50 Hz nominal unsynchronised 60 Hz sync to mains |
| UPS type | Double conversion online |
| Wave type | Sine wave |
| output voltage tolerance | +/- 1% static and +/- 5% at 100% load step |
| output harmonic distortion | < 2% linear load and < 3% non-linear load |
| output overload operation | 10 minutes at 125% and 60 seconds at 150% |
| bypass type | Built-in maintenance bypass |
| efficiency | 96 % (in battery operation) |
| Transfer time | 2 ms typical |
| product certifications | CUL listed EUROBAT UL listed |
|---|---|
| standards | CSA C22.2 No 107.3-05 EN/IEC 62040-1-1 EN/IEC 62040-2 EN/IEC 62040-3 OSHPD UL 1778 UL 60950-1 |
| ambient air temperature for operation | 0…40 °C |
|---|---|
| relative humidity | 0…95 % |
| operating altitude | 0...30000 ft |
| ambient air temperature for storage | -15…40 °C |
| storage Relative Humidity | 0…95 % |
| storage altitude | 0.00…15240.00 m |
| acoustic level | 54 dBA |
| heat dissipation | 30946 Btu/h |
| NEMA degree of protection | NEMA 1 |
| IP degree of protection | IP20 |
| Battery recharge time | 3.5 h |
|---|---|
| battery overload operation | 10 minutes at 125% and 60 seconds at 150% |
| battery charger power | 23631 W rated |
| battery design life | 5…8 year(s) |
| preinstalled device | Network management card 2 with environmental monitoring, out of band access and Modbus |
|---|---|
| control panel | Touch screen LCD user interface |
| Emergency power off | Optional |
| Warranty | 1 year on-site repair or replace with factory authorized Start-Up |
|---|
